Mobile column - EHB910V17DC wireless
EHB910V17DC wireless
article no.: EHB910V17DC01-H | Technical data sheet: Download
Product variants

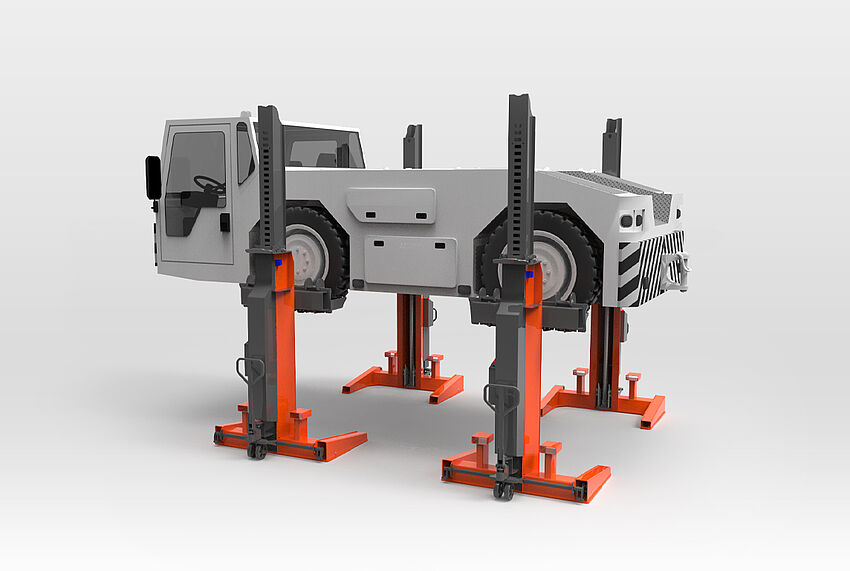

Mobile column EHB910V17DC with a capacity of 10 tons and a maximum wheel diameter of 1770 mm especially designed for airport ground vehicles/GSE. The hydraulic column is equipped with battery drive and radio control and, therefore, does not depend on a cable connection. Operation panel and travelling device at each column. A set of these identical columns is composed as follows:
- set of 4 mobile columns: 4 x EHB910V17DC01-H
- set of 6 mobile columns: 6 x EHB910V17DC01-H
- sets with up to 10 columns possible
product images
accessories
your system benefits
Versatile use in the workshop
The existing workshop area remains free for various use. You take the mobile columns to just where you need them, indoors or outdoors. Thus the hoists of model EHB can be used most versatile and multi-functional.

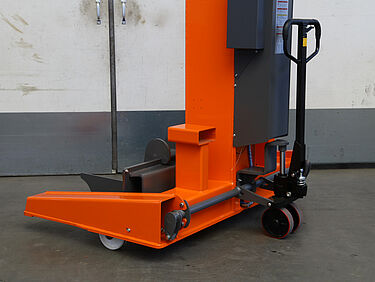

Mobile column EHB907 easily maneuverable by one person
The mobile Finkbeiner columns can be stored aside to save space
Mobile column lifts EHB907V11DC in use at a public bus depot
Mobile columns for any vehicle
Within the large range of mobile columns you can select the right lift perfectly suitable for your vehicles and your applications.
Mobile columns are available from 2.5 up to 15 tons capacity and adjustable support forks for wheel diameters of up to 2.5 m, for standard commercial vehicles or special heavy duty vehicles.
The individual columns can be freely positioned to the vehicle; 2, 4, 6, 8 or more per lift set.
You can achieve even more versatile use of the lifts by various accessories such as support cross beams to lift the vehicle at the chassis.
For washbay or outdoor applications special models are available.
Mobile columns EHB905V20DC wireless, capacity 4 x 5 t, wheel diameter up to 2 m
Finkbeiner mobile hoist EHB707 also suitable for military vehicles such as armored cars
Mobile columns for lifting apron vehicles (GSE)
Free access to the vehicle
Have fun to get your work done! With free access to the underside of the raised vehicle; with sufficient head clearance by large lifting height; with best lighting conditions underneath the vehicle which can even be improved using LED spotlights; with efficient working at floor level and short distances to walk; with your portable workshop equipment such as transmission jacks, tool boxes etc. easily maneuvered directly underneath the vehicle; with axle stands to support the vehicle for free access to wheels and brakes.
arious works can be done simultaneously at the lifted vehicle
Articulated bus supported on 3 crossbeams, wheel-free
One axle of the vehicle is lowered onto portable support stands, for free access to the wheels
Safe support of the vehicle
The lift columns are moved towards the vehicle and positioned at the wheels, quickly and simply. The wheel forks can be adjusted in order to touch the wheels from both sides and to secure the load.
The columns are moved towards the vehicle and simply placed at the wheels

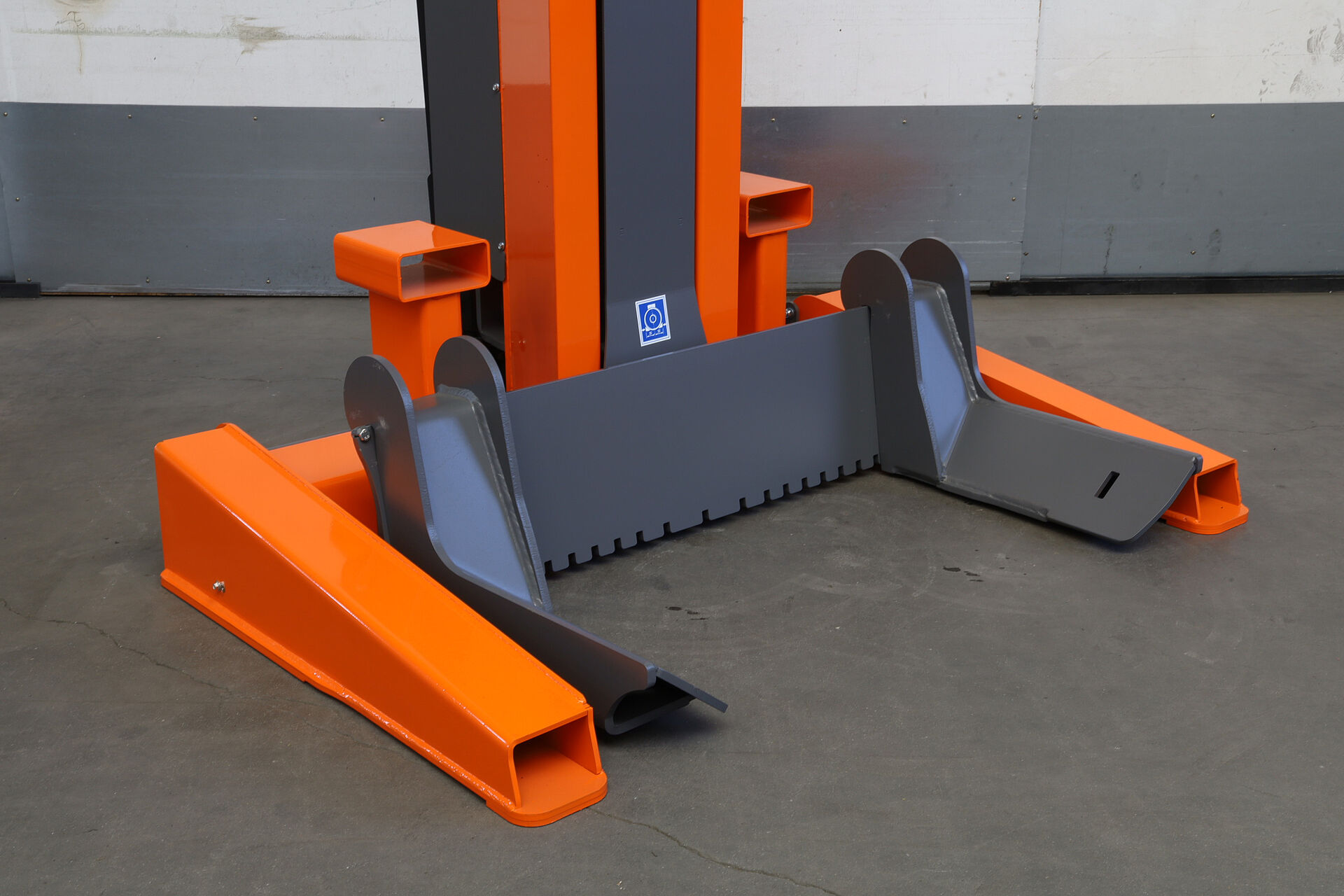

Adjustable wheel fork suitable for different wheel sizes
Lifting of a tractor using Finkbeiner mobile columns, model EHB905V20DC wireless
Economic efficiency
Nonstationary and movable vehicle lifts do not require expensive foundations works or a permanent installation. Just a standard even workshop floor is sufficient to operate the lift.
In comparison to all other workshop systems such as pits, in-ground or stationary platform lifts mobile columns by far represent the most economic workshop solution.
Within the workshop area any number of column sets can be operated.
technical specifications
specifications
| article no. | EHB910V17DC01-H | |
| lifting unit | type of columns | all columns identical |
| quantity of columns, maximum | 10 | |
| load support | load support | adjustable wheel fork |
| capacity per column | 10 t | |
| wheel size Ø minimum (mm) | 550 mm | |
| wheel size Ø maximum (mm) | 1770 mm | |
| length of fork (mm) | 450 mm | |
| lifting height | lifting stroke effective | 1750 mm |
| lifting height | 1850 mm | |
| frame height at front (mm) | 170 mm | |
| speed | lifting time | 160 sec. |
| lowering time (under load) | 160 sec. | |
| drive | mode of drive | electro-hydraulic |
| motor | DC voltage | |
| motor power per column (kW) | 2.2 KW | |
| power supply | type of power supply | battery-powered |
| type of battery | deep cycle, maintenance-free | |
| battery capacity per column | 80 Ah | |
| lift cycles at full load | 15 | |
| fuse, per column (Amps) | 2.5 A | |
| total battery voltage | 24 V | |
| length of charging cable | 10 m | |
| charging concept | EasyCharge | |
| charging voltage | 230 V | |
| frequency of power supply | 50 Hz | |
| charging time | 8 h | |
| communication | communication via radio, wireless | |
| operation | mode of operation | operation at each column |
| activation | all, individual, pair, group | |
| control | electronic | |
| Softstart | X | |
| regularisation | synchronisation | proportional valves, infinitely variable |
| travelling device | travelling device | at each column |
| travelling device at front | 2 front wheels, hydraulically acting | |
| travelling device at rear | 1 hydraulic pallet jack with twin wheels | |
| ground clearance at front | 80 mm | |
| ground clearance at rear | 100 mm | |
| load securing | load securing | hydraulic and mechanical |
| dimensions | length | 1420 mm |
| width | 1665 mm | |
| height | 2530 mm | |
| height of fork (mm) | 140 mm | |
| weight | weight per column (kgs) | 950 kg |
| protection class | IP54 | |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
