Intermediate platforms - FHB3500-PF-6355350
FHB3500-PF-6355350
article no.: FHB3500-Z-PF6355350

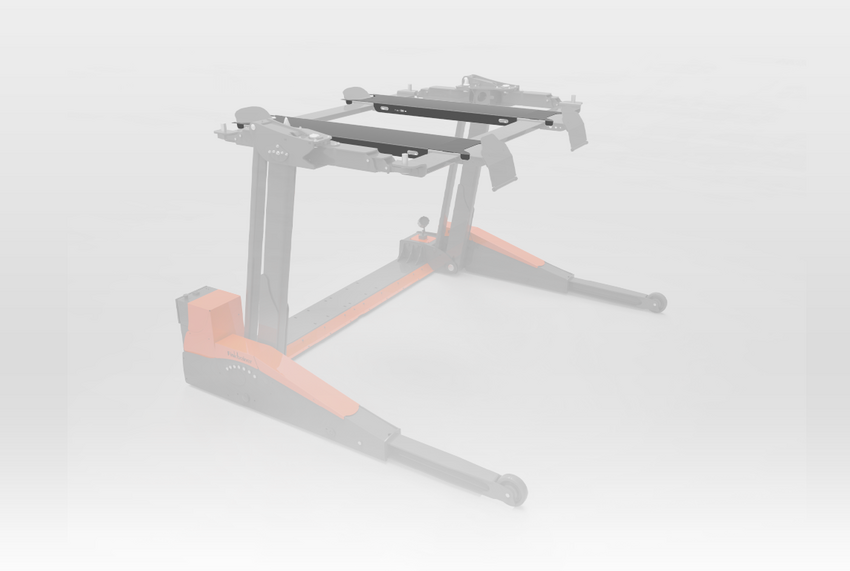

Accessory for mobile 2-post lift FHB3500 in combination with the ascending device FATORO. The intermediate platforms PF-6355350 are designed to connect the front and rear wheel pads of the ascending device FATORO. So small agricultural machinery and tractors can be lifted. Included in delivery: 2 platforms with a total capacity of 1 ton.
technical specifications
specifications
| article no. | FHB3500-Z-PF6355350 | |
| load support | load support | platforms |
| capacity | 1 t | |
| quantity of platforms | 2 | |
| width of platforms (mm) | 350 mm | |
| platform surface | bulb plate | |
| lifting height | lifting height | 1910 mm |
| dimensions | drive-in width | 2300 mm |
| weight | 53 kg | |
| surface treatment | type of surface treatment | powder coating |
| colour | grey RAL7015 |
