Mobile column - EHB907KDC-wireless
EHB907KDC-wireless
article no.: EHB907KDC01-H | Technical data sheet: Download
Product variants

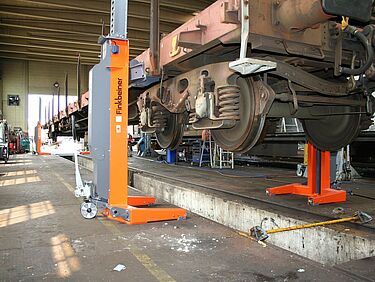

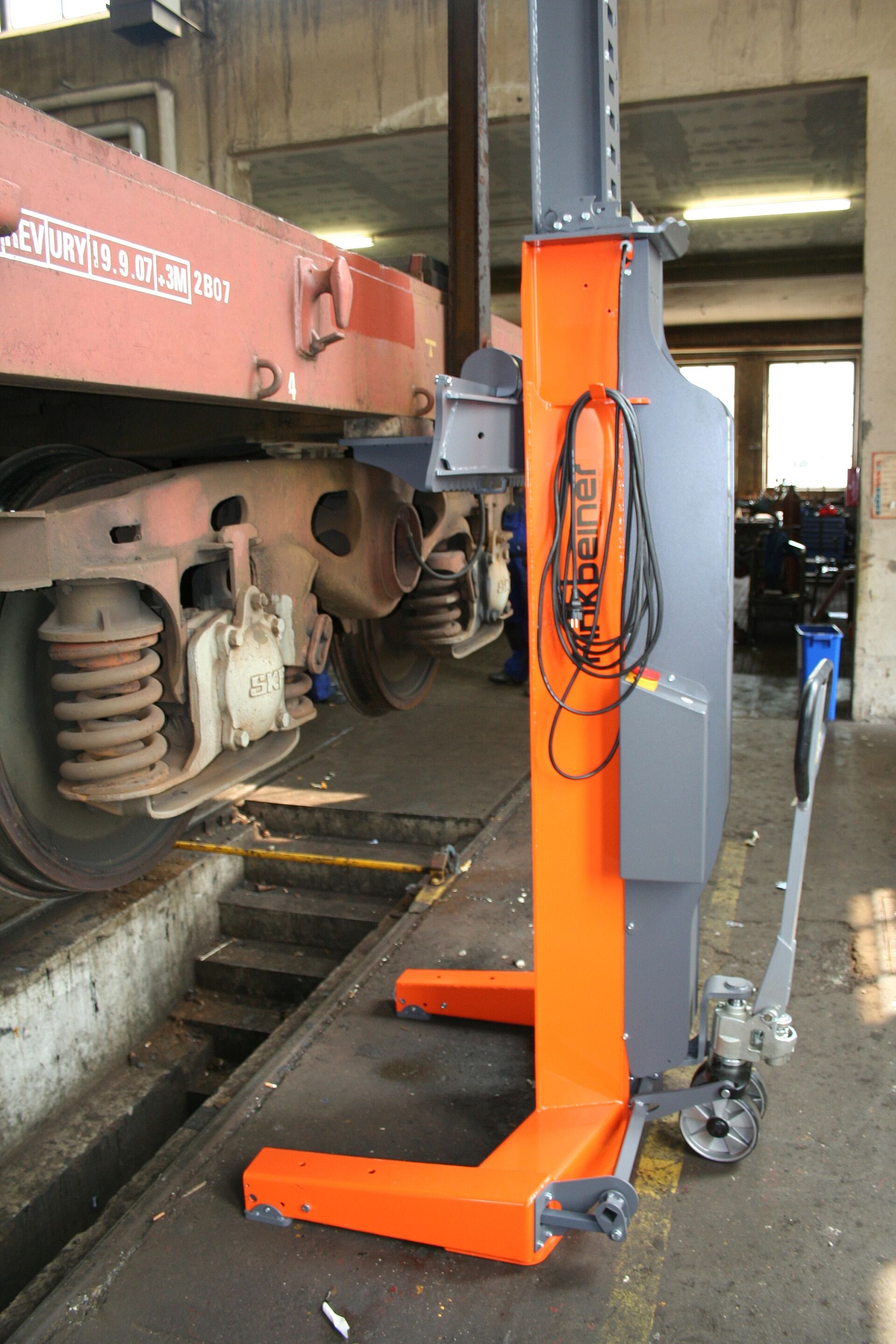

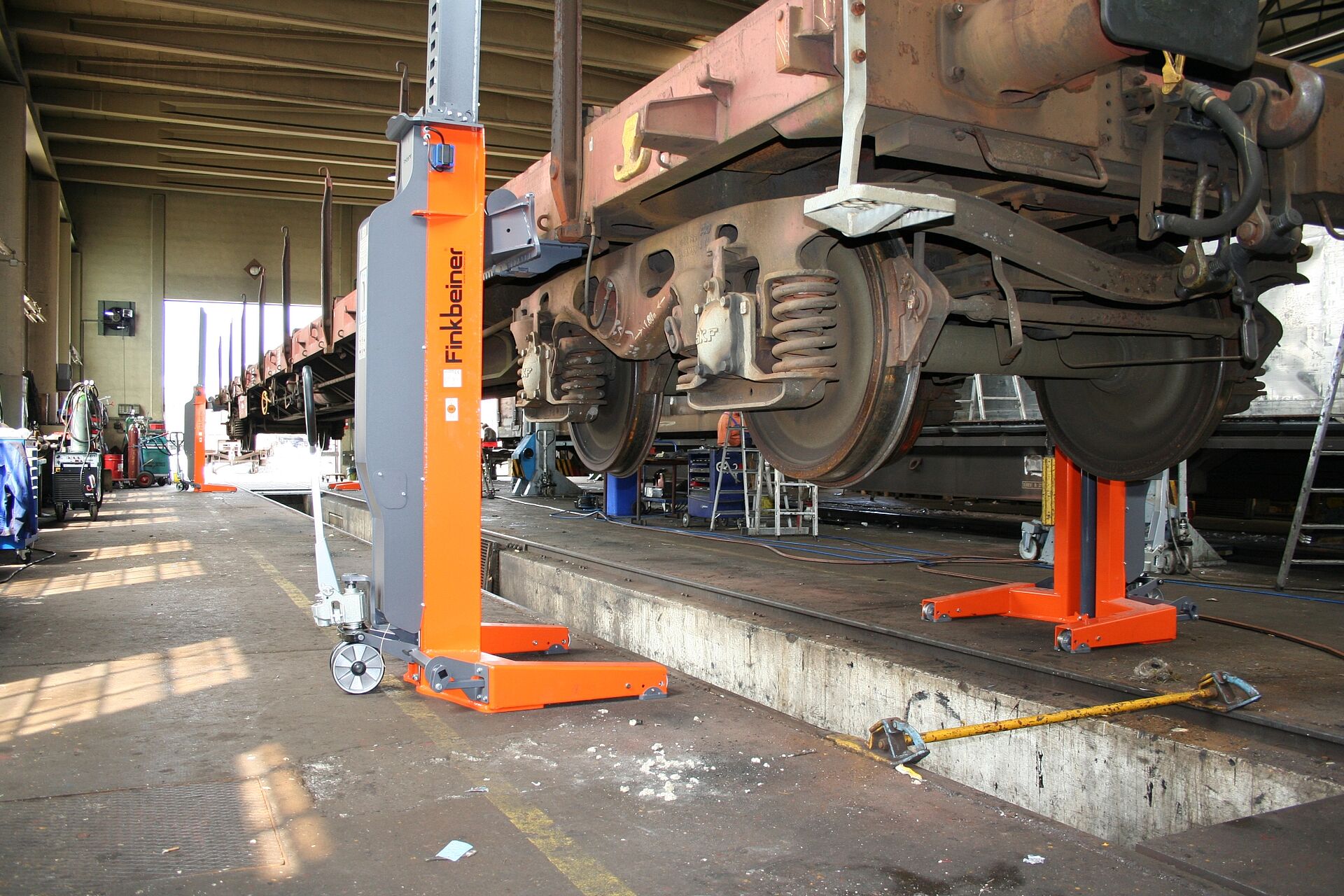

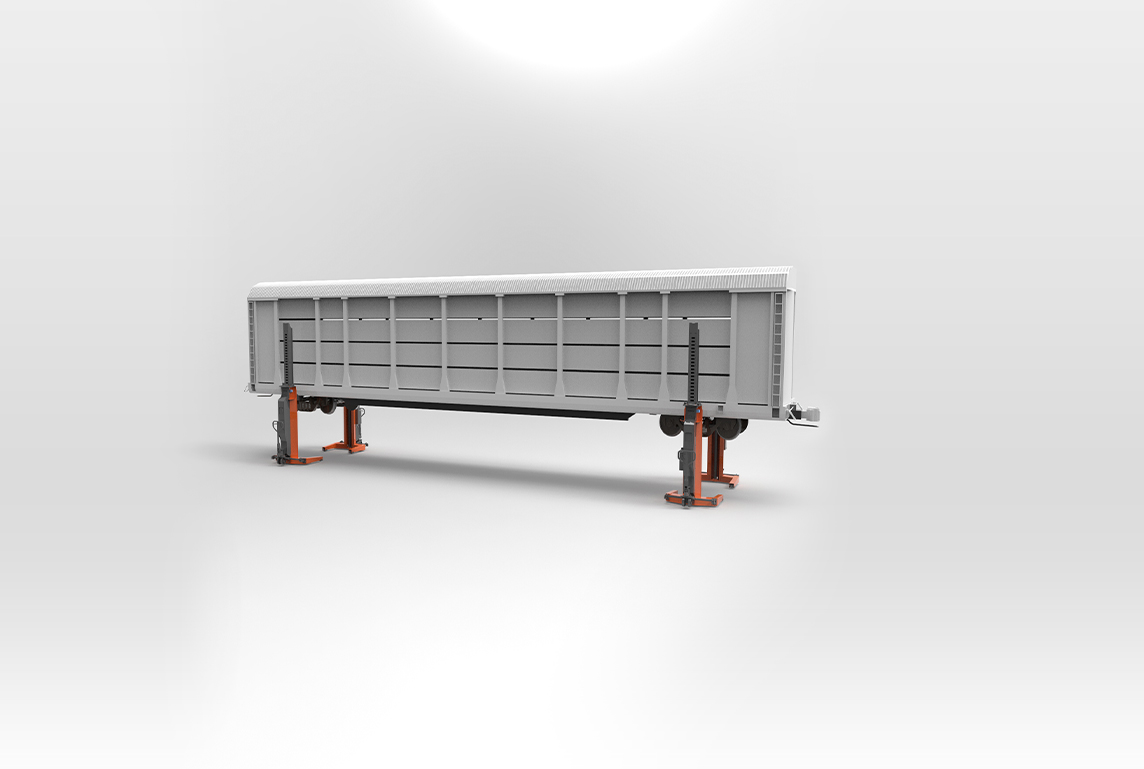

Mobile column with a capacity of 7.5 t for light railway vehicles. The load support is carried out by a fixed bracket to lift at the frame. Each column is equipped with a battery drive and radio communication. Per lift set any number of columns can be operated.

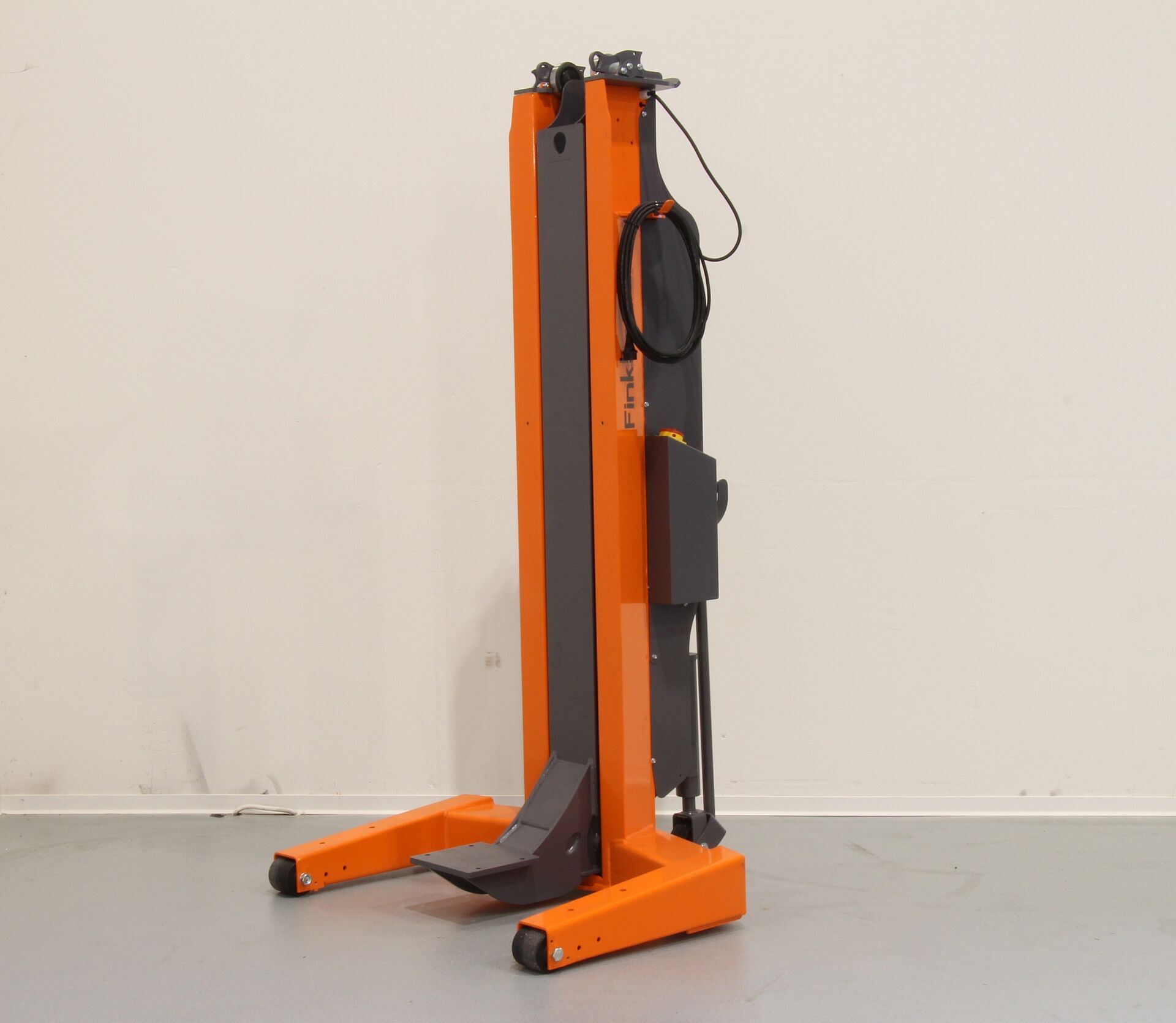

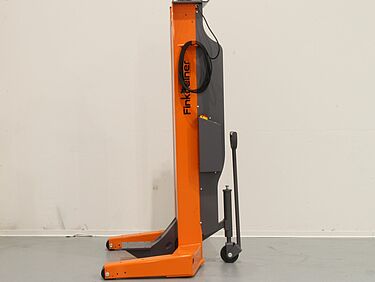

product images
practice images
your system benefits
Flexible use
Our mobile columns are designed for lifting of light railway vehicles such as trams or wagons. Depending on the model, they have a capacity of 7.5 tons or 12 tons and different load supports. In addition, all wireless columns of a EHB lift set are identical. Thus, the quantity of columns per lift set can be configurated freely. In this way, up to 30 columns per set are possible.
Mobile columns EHB907FDC for railway vehicles such as trams; 7500 kgs per column, load support bracket adjustable in height

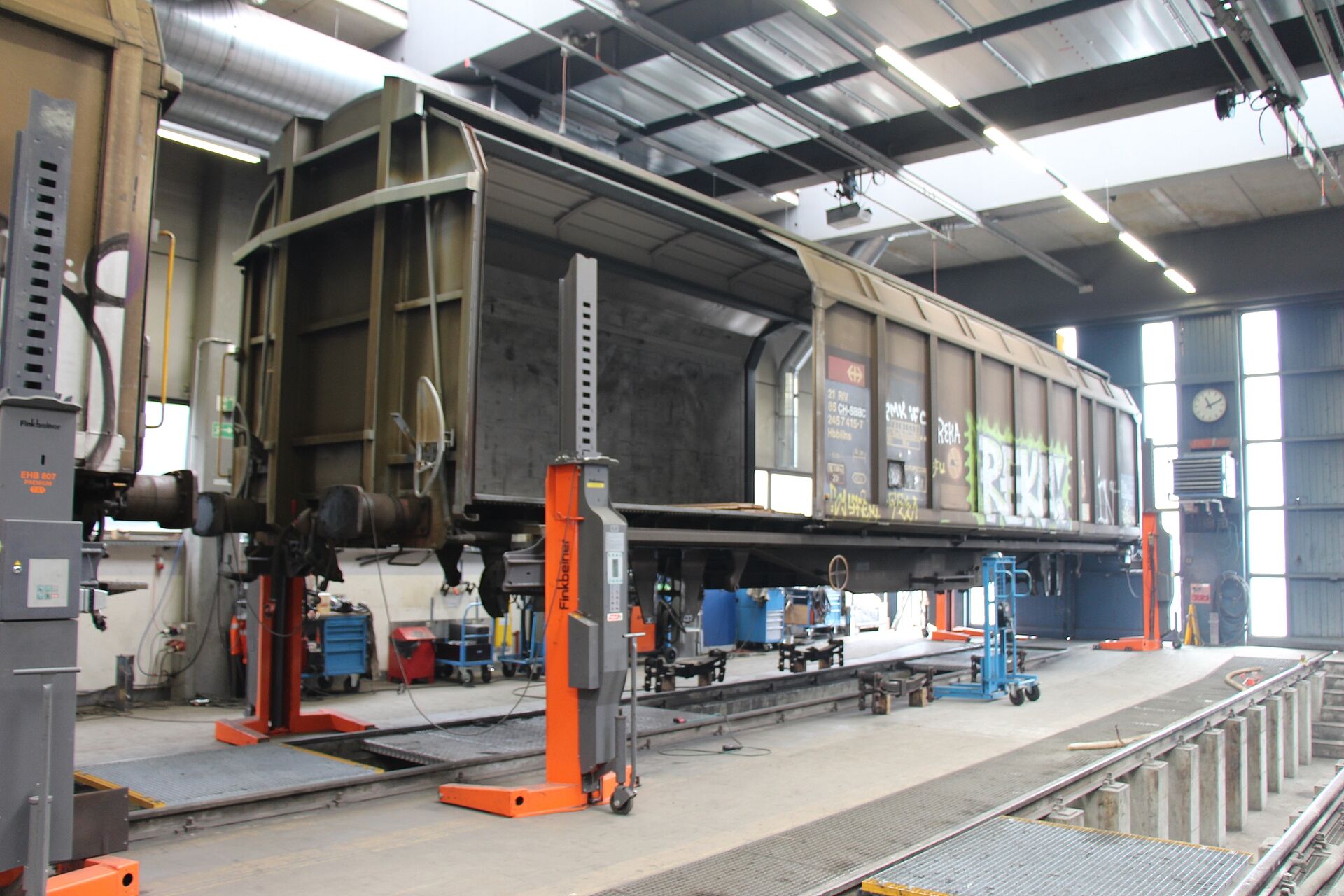

Hoist Finkbeiner EHB907KDC-wireless; movable column lift for railways, capacity total 30 tons, hydraulic drive
Mobile columns Finkbeiner 12 tons per column, hydraulic drive, for lifting railway vehicles
Economic efficiency
The columns are easy to maneuver and position at the vehicle by one person. Time consuming cable connection of the columns is not necessary when using Finkbeiner wireless lifting systems. In addition, high voltage cable connections for operating the lifting system is eliminated because the battery-powered columns are energy self-sufficient. The hydraulic lifting columns are almost wear and maintenance free.

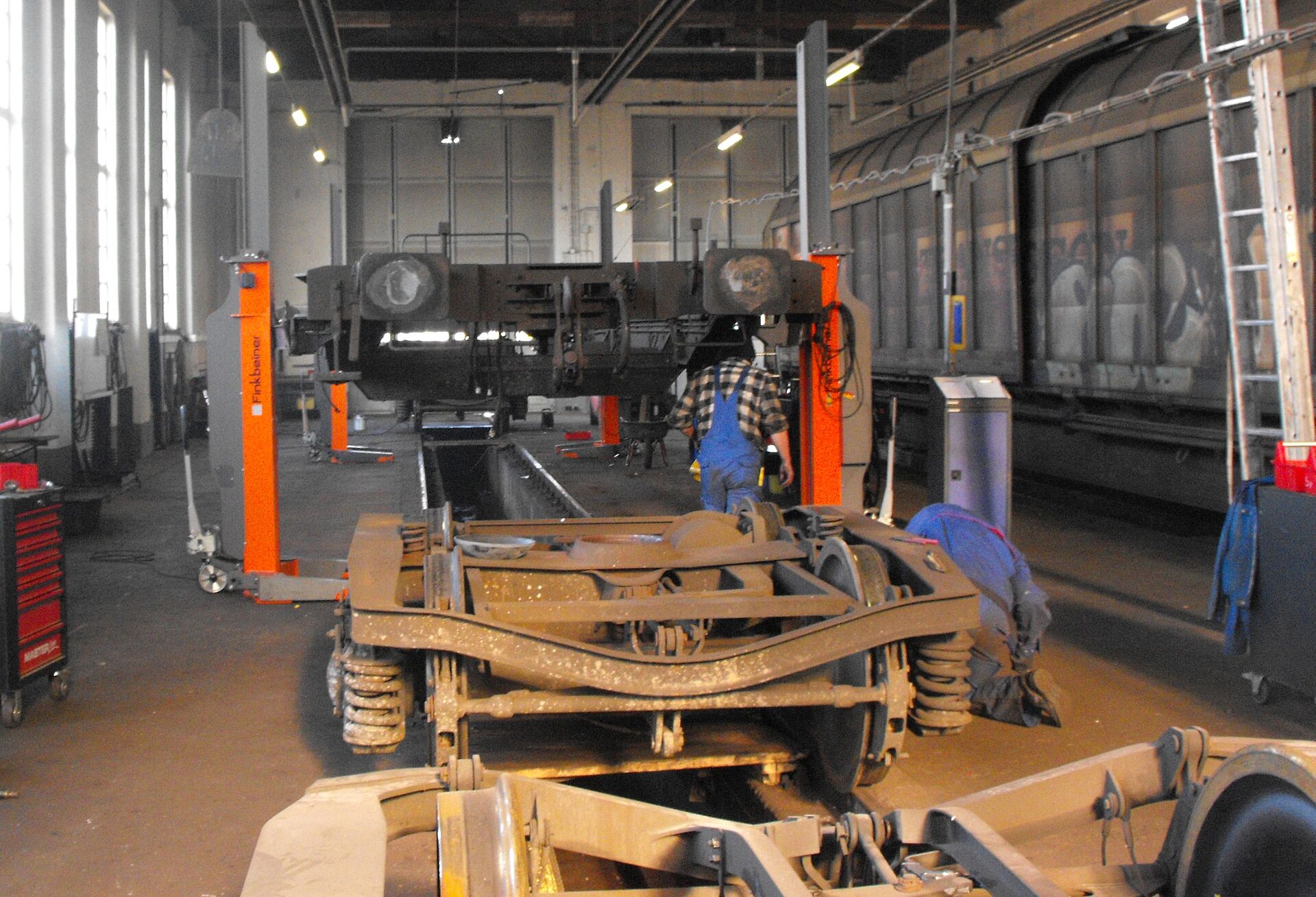

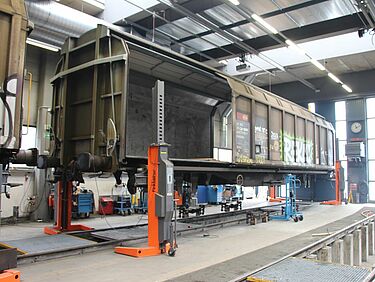

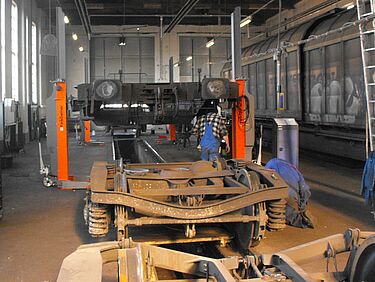

Operation of several mobile column lifts EHB at the same time

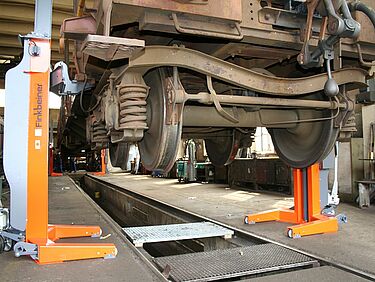

Mobile columns Finkbeiner EHB907KDC wireless by radio control and battery drive

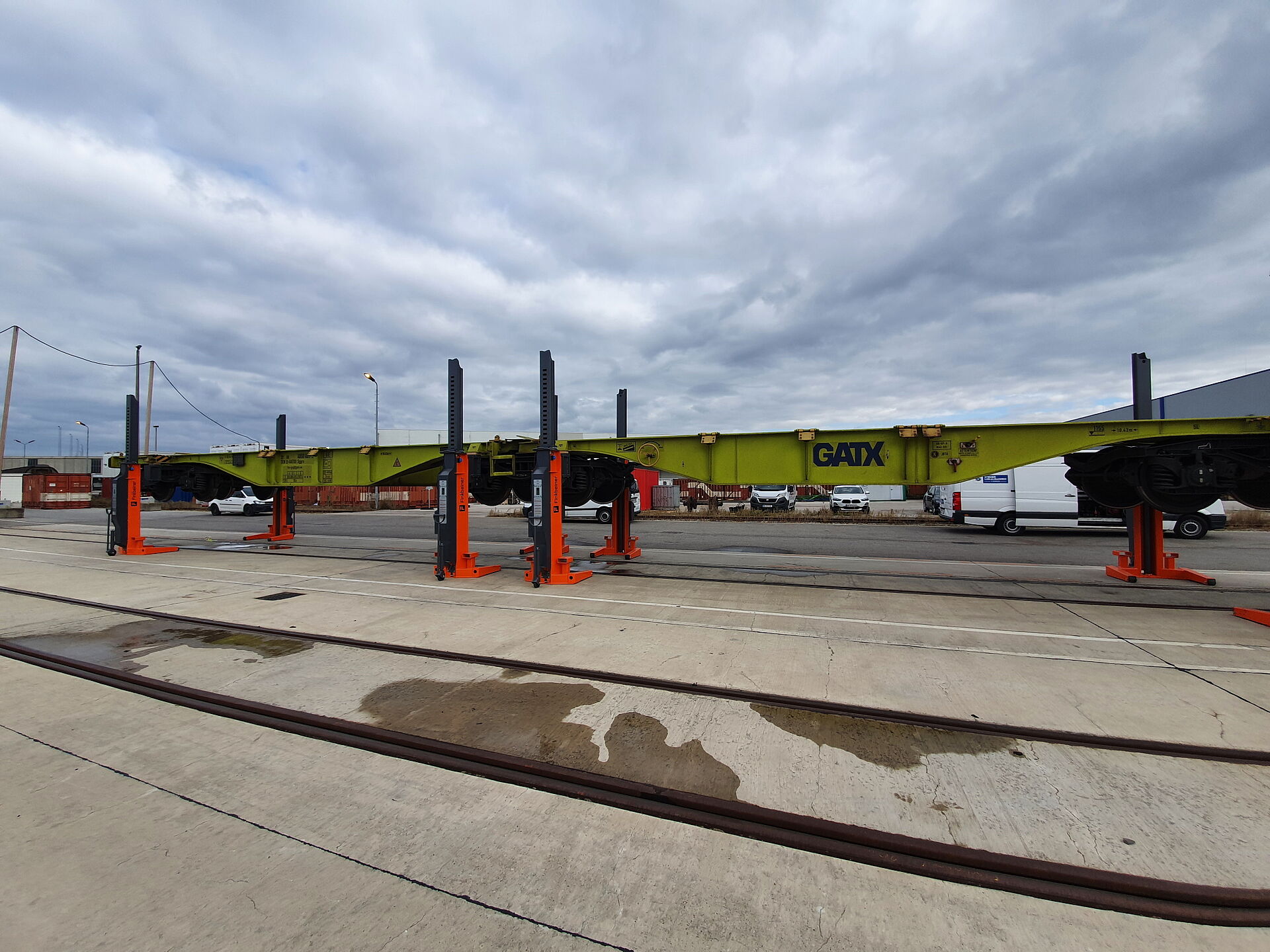

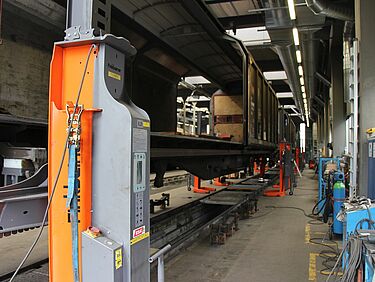

Flexible installation without disturbing cable connections
Wireless technology
Through radio communication and battery drive, the wireless Finkbeiner lifting systems are extremely flexible. A trip hazard is eliminated with no cables on the ground or across the track. No separate controllers. No time consuming cable connections from column to column.
The wireless lifting columns operate via radio communication. Frequency band 433 MHz, with two mutually monitoring microprocessors, tested according to DIN EN ISO 13849, Safety Category 3, Performance Level Plr.
The independent battery drive allows the lift to be largely self-sufficient from a mains connection. The power supply of the lifting columns is via maintenance-free and deep-cycle AGM batteries which generally last for several days of work without recharging.

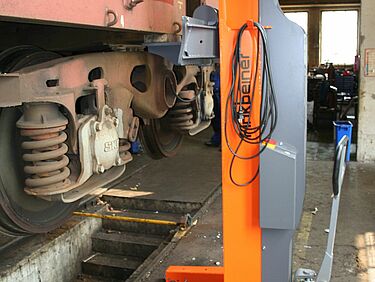

Particularly practical: A battery charger and a charging cable are integrated at each column. To enable charging to be even faster and easier, several lifting columns can be linked to each other via their charging cables and charged via a 230V mains supply.
technical specifications
specifications
| article no. | EHB907KDC01-H | |
| lifting unit | type of columns | all columns identical |
| load support | load support | bracket, fixed |
| capacity per column | 7.5 t | |
| lifting height | lifting stroke effective | 1750 mm |
| minimum support height (mm) | 150 mm | |
| speed | lifting time | 180 sec. |
| lowering time (under load) | 180 sec. | |
| drive | mode of drive | electro-hydraulic |
| motor | DC voltage | |
| motor power per column (kW) | 2.2 KW | |
| power supply | type of power supply | battery-powered |
| type of battery | deep cycle, maintenance-free | |
| battery capacity per column | 80 Ah | |
| lift cycles at full load | 20 | |
| total battery voltage | 24 V | |
| length of charging cable | 10 m | |
| charging concept | EasyCharge | |
| charging voltage | 230 V | |
| frequency of power supply | 50 Hz | |
| charging time | 8 h | |
| communication | communication via radio, wireless | |
| operation | mode of operation | operation at each column |
| activation | all, individual, group | |
| control | electronic | |
| Softstart | X | |
| regularisation | synchronisation | proportional valves, infinitely variable |

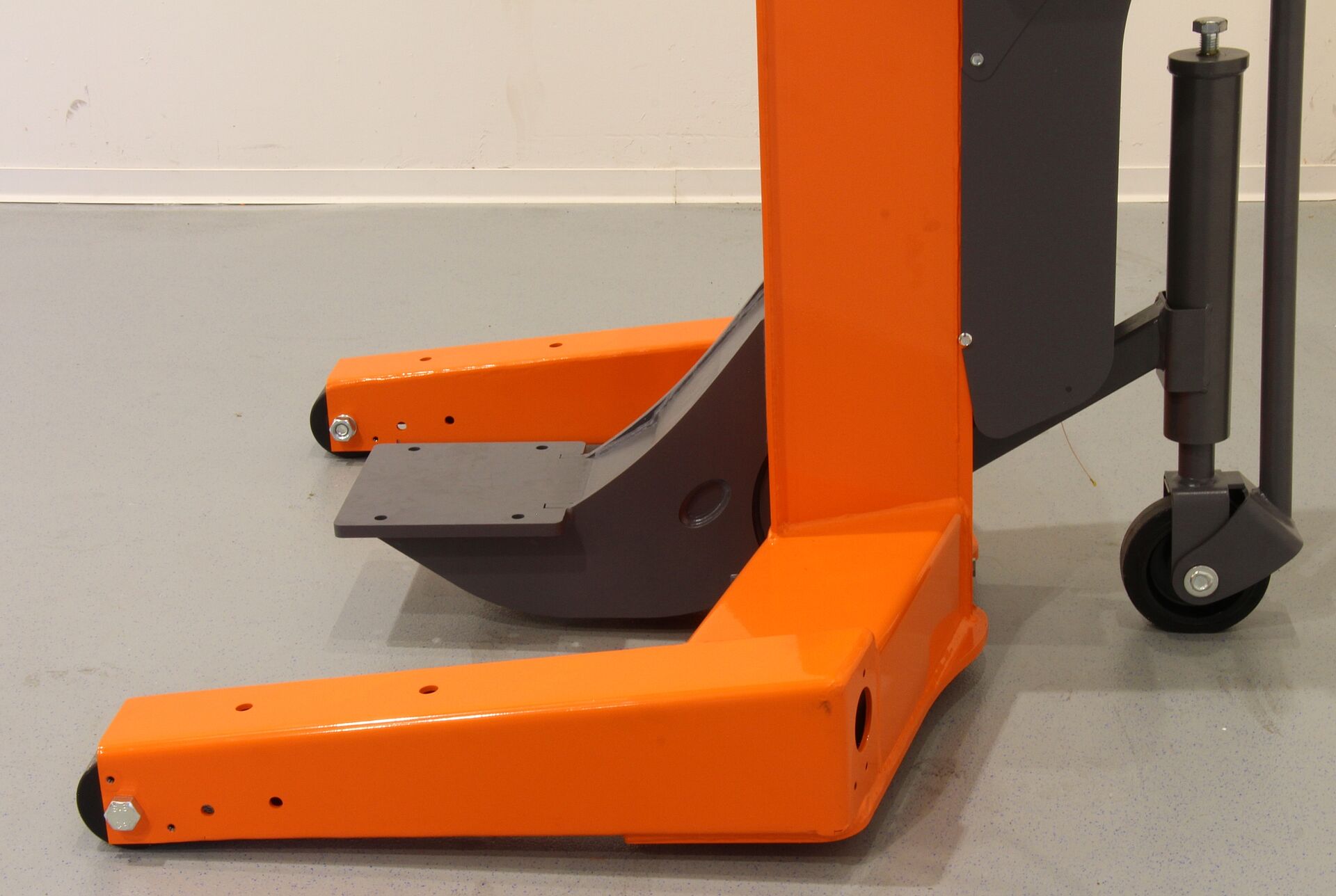

| travelling device | travelling device | at each column |
| travelling device at front | 2 front wheels, fixed | |
| travelling device at rear | 1 wheel handle, spring-loaded, self-lowering under load | |
| ground clearance at front | 15 mm | |
| ground clearance at rear | 35 mm | |
| load securing | load securing | hydraulic and mechanical |
| lock spacing | 15 mm | |
| dimensions | length | 1200 mm |
| width | 1165 mm | |
| height | 2250 mm | |
| weight | weight per column (kgs) | 540 kg |
| protection class | IP54 | |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
